Features:

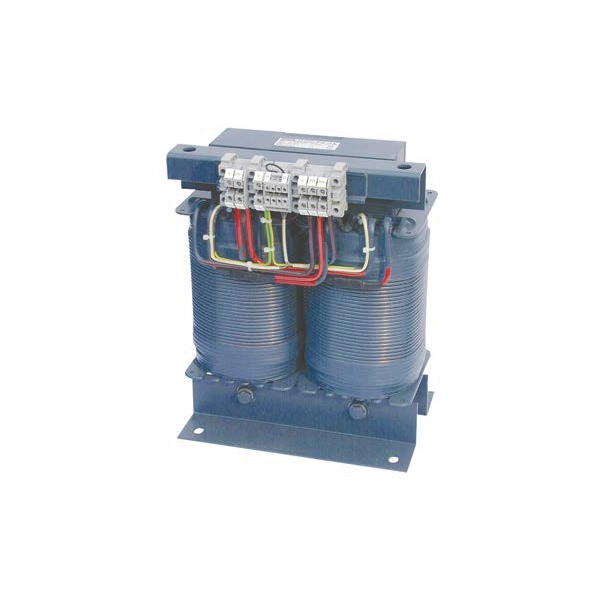

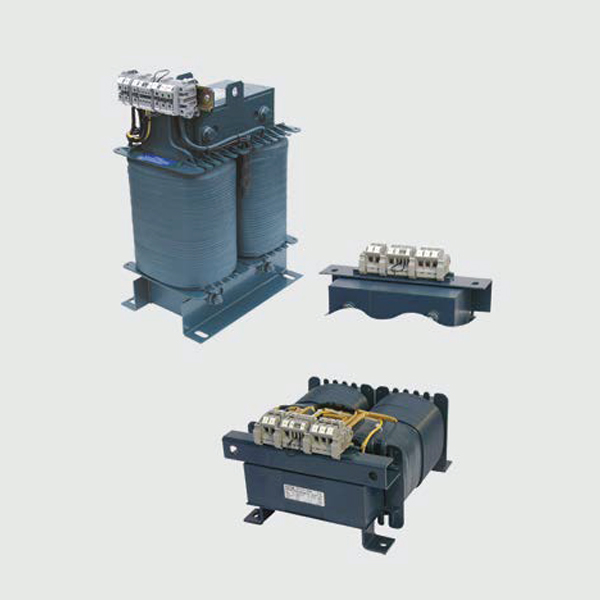

The single-phase isolating tran fsormers meet the requirements of the following stan dards: IEC 60364-7-710: 2002-11, DIN VDE 0100-710: 2012-10, IEC 61558-1:1997, DIN EN 61558-1 (VDE 0570-1): 1998, IEC 61558-2-15: 1999, DIN EN 61558-2-15 (VDE 0570-2-15): 2001.
Rated power 3.15…10 kVA
Built-in temperature sensors
Low noise level < 35 dB (A)
High overload capability
VDE ENEC mark
The single-phase isolating tran fsormers meet the requirements of the following stan dards: IEC 60364-7-710: 2002-11, DIN VDE 0100-710: 2012-10, IEC 61558-1:1997, DIN EN 61558-1 (VDE 0570-1): 1998, IEC 61558-2-15: 1999, DIN EN 61558-2-15 (VDE 0570-2-15): 2001.
Rated power 3.15…10 kVA
Built-in temperature sensors
Low noise level < 35 dB (A)
High overload capability
VDE ENEC mark
| Primary voltage | AC 230 V |
| Secondary voltage | AC 230 V |
| Frequency | 50-60 Hz |
| Operating mode | continuous operation |
| Insulation class | B |
| Max. ambient temperature | 40 °C |
| Protection class | IP 00 |
| Connections | separate terminal block |
| Protection class | Class I |
| PTC resistor | 1 resistor per transformer winding |
