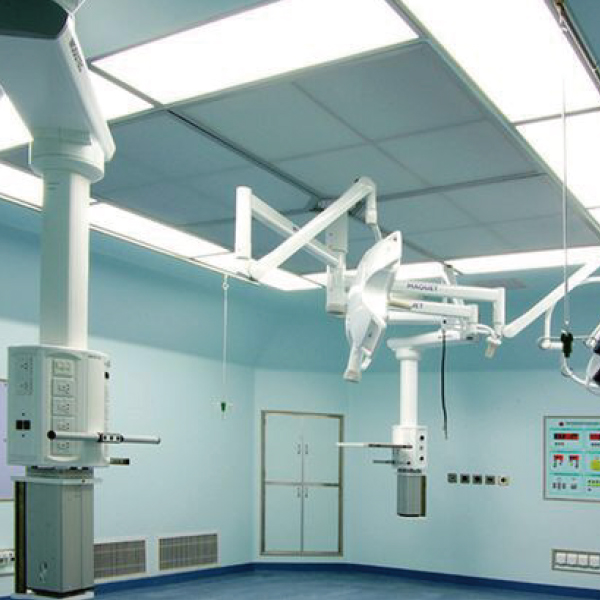

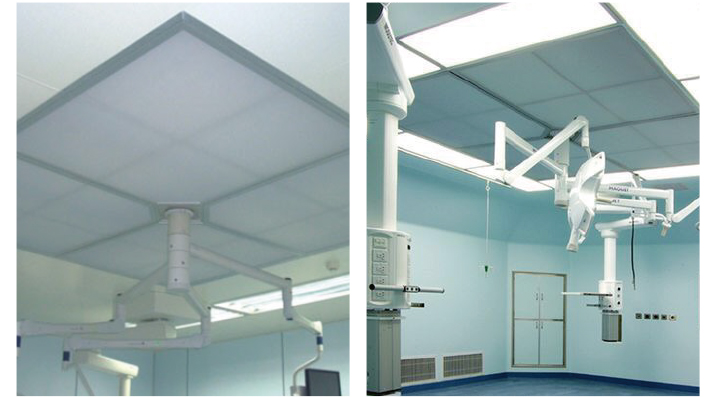

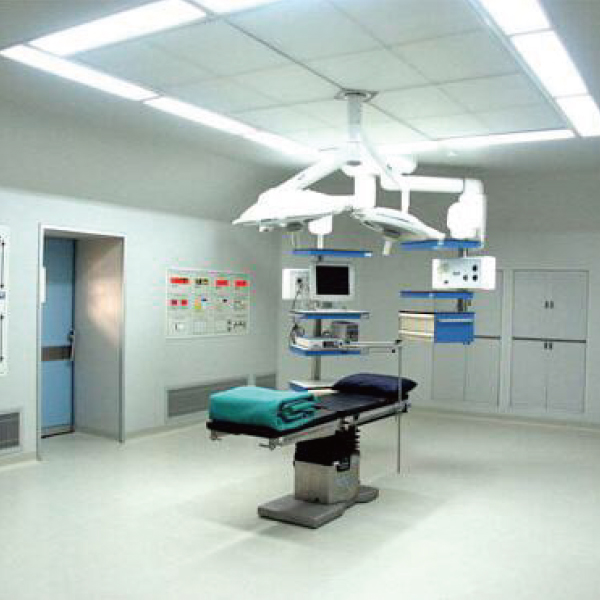

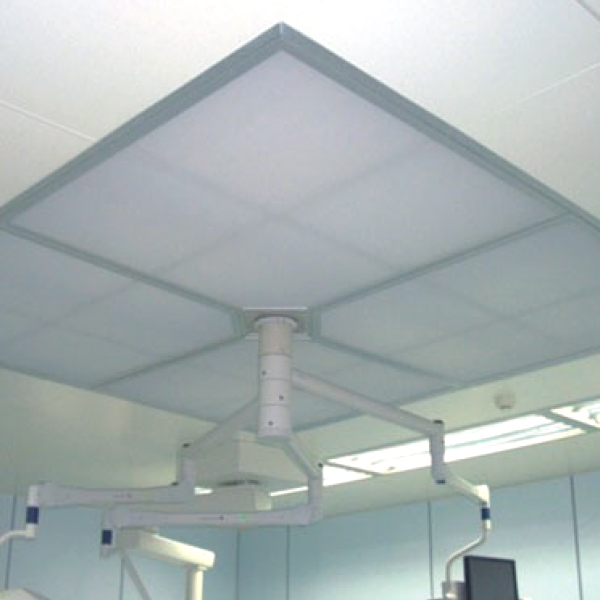

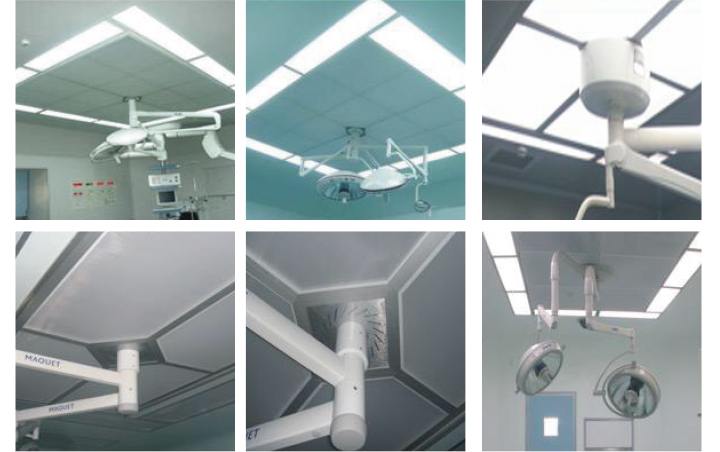

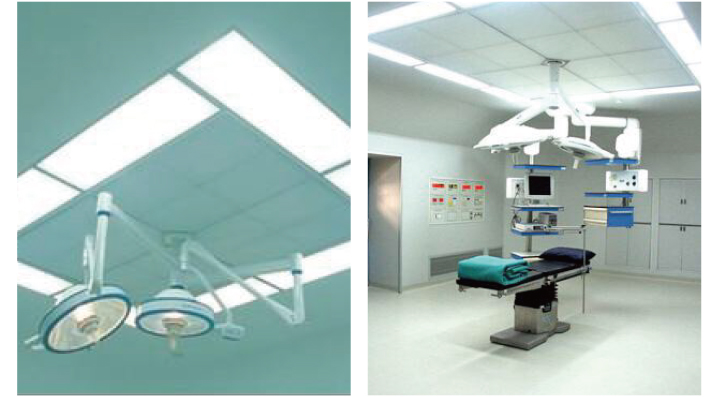

The cleanliness grade of laminar ow ceiling has 100, 1000,10000 and 100000 class, and same with burn ward, blood ward, ophthalmic operating room.
Feature
• Adopt forming SS as skeleton, inner double steel plate is lled with PU foam or XPC composite board plate as box structure.Inner still can choose stainless steel plate, in order to prolong its service life;
• High e ciency air lter, increasing the volume of plenum, more conducive to ow;
• If environment is not available, also can make it hollow beam form or forms of high e ciency air lter tile.
100 class air supply ceiling
1000 class air supply ceiling
10000 class air supply ceiling
Feature
• Adopt forming SS as skeleton, inner double steel plate is lled with PU foam or XPC composite board plate as box structure.Inner still can choose stainless steel plate, in order to prolong its service life;
• High e ciency air lter, increasing the volume of plenum, more conducive to ow;
• If environment is not available, also can make it hollow beam form or forms of high e ciency air lter tile.
| Model No | Ceiling Type | Ceiling Size | HEPA Size | HEPA Q'TY |
| NY02-(01-02) | 100 class | 2850*2500*500 | 610*305*292 | 8-10 pcs |
| NY02-(03-04) | 1000 class | 2600*1800*500 | 610*305*292 | 4-6 pcs |
| NY02-(01508) | 10000 class | 2600*1400*500 | 610*305*292 | 2-4 pcs |
