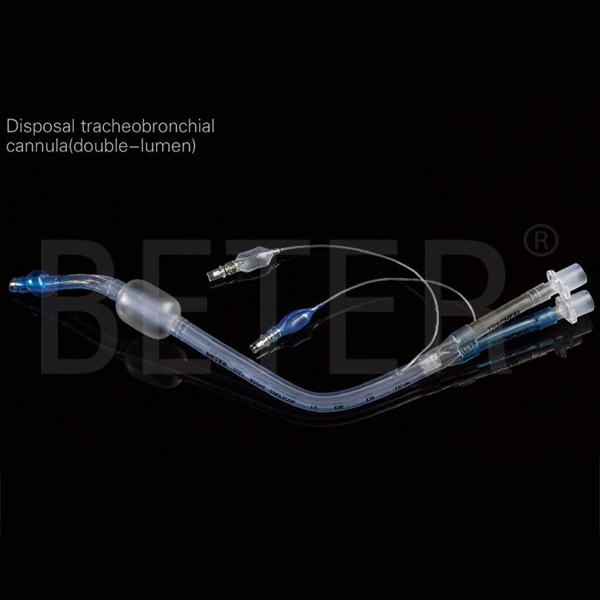

● It is applicable to thoracic operation or one-lung independence of critical patients, bronchial cannula under synchronous or nonsynchronous ventilation.
● The soft low-pressure balloon and clean tube do not cause mucosal injury.
● Color balloon helps judge the position of front end through bronchoscope.
● X-ray non-penetrating mark above the balloon catheter tip and outside the opening into windpipe which can tell the position of catheter.

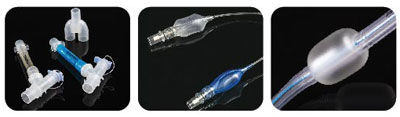

● In accessory bag there have 2 opti-port TM joints, 2 suction catheters and 1 triple joint.
● During storage, the insert of setting stylet is to keep the form of Endobronchial Tube, but it shall be removed before intubation.
● It is only for single patient for reducing the risk of cross infection.
| Models | Sizes | Length |
| KB-A005-01-02 | Fr28(Left-Right） | ≥240mm |
| KB-A005-03-04 | Fr32(Left-Right） | ≥250mm |
| KB-A005-05-06 | Fr35(Left-Left） | ≥260mm |
| KB-A005-07-08 | Fr37(Left-Left） | ≥270mm |
| KB-A005-09-10 | Fr39(Left-Left） | ≥280mm |
| KB-A005-13-14 | Fr41(Left-Left） | ≥290mm |
